Роторна мелница SK 300

Роторна мелница SK 300

МОжете да поискате безплатна необвързваща оферта на тази страница.

Моля изберете продуктите, които искате да включите в запитването ви. Можете да избирате продукти от всички продуктови страници.

Листа с вашето запитване ще бъде видим в горния десен ъгъл на уеб страницата.

Ние сме тук, за да Ви помогнем!

Нашите експерти ще ви помогнат да изберете най-подходящото устройство за вашите нужди. Те с удоволствие ще ви го демонстрират в нашите демонстрационни лаборатории, онлайн или на място при вас!

Заявка за консултация

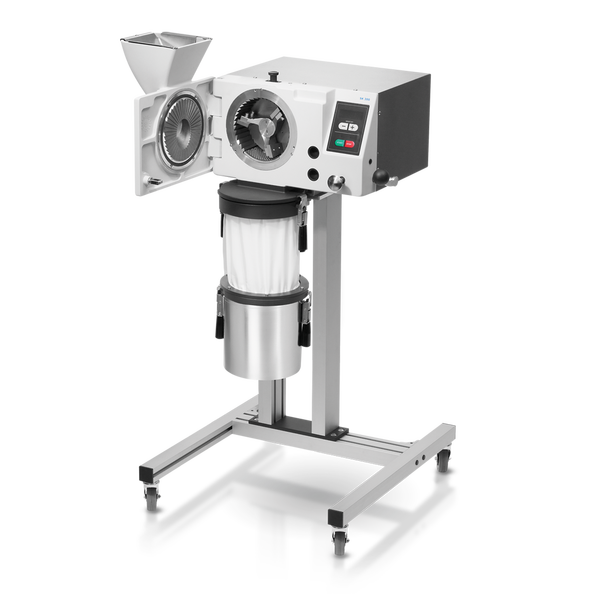

Cross Beater Mill SK 300

Cross Beater Mill SK 300 with cross beater, baffle plates, 240 mm filter hose and collecting receptacle
(please order bottom sieve and optional base frame separately)

Selection help
Selection help
Depending on the sample material and subsequent analysis, grinding inserts and tools of different materials may be used:

  • Cast iron:
    Low-priced option

  • Hardened steel:
    Particularly suitable for grinding abrasive materials (like slag).

  • Stainless steel:
    With its superior characteristics (like high corrosion resistance) it is suitable for most sample materials.

  • Steel 1.1740:
    For heavy-metal-free grinding a combination of cast iron and steel 1.1740 is recommended.
grinding assembly / cross beater / baffle plates
20.751.0001
SK 300200–240 V, 50/60 Hzcast iron / cast iron / hardened steel
20.751.0002
SK 300200–240 V, 50/60 Hzhardened steel / cast iron / hardened steel
20.751.0003
SK 300200–240 V, 50/60 Hzstainless steel / stainless steel / stainless steel
20.751.0004
SK 300200–240 V, 50/60 Hzcast iron / cast iron / steel 1.1740
for grinding without heavy-metal contamination
22.824.0007Base frame with wheels

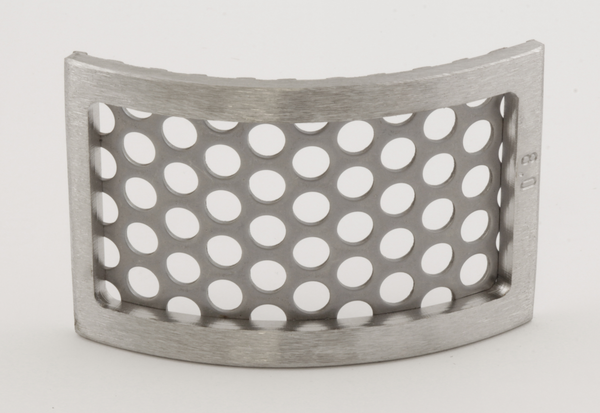

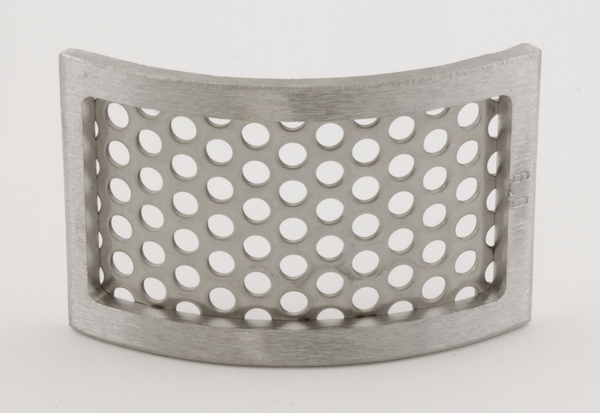

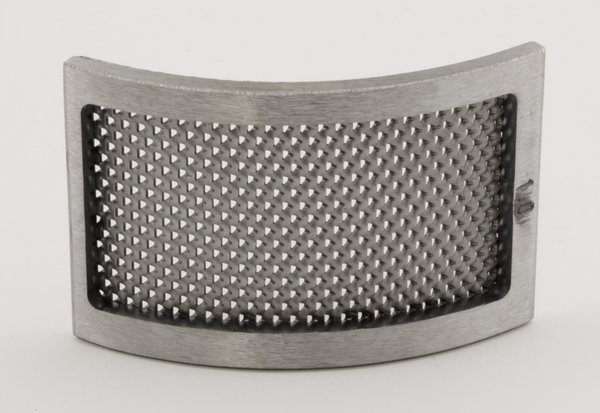

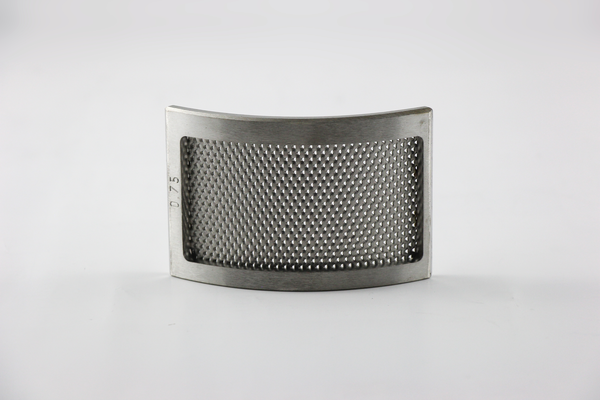

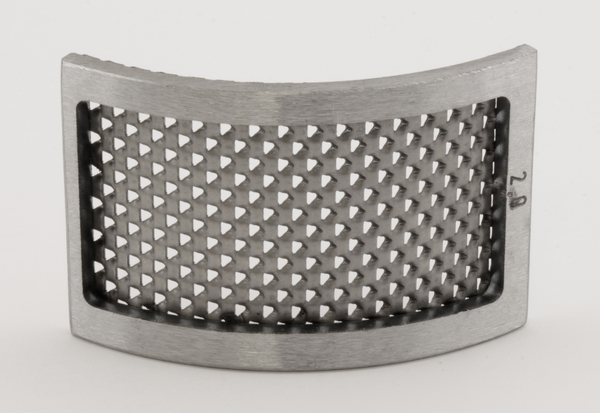

Bottom sieves SK 300

Bottom sieves SK 300 of stainless steel

02.407.0098

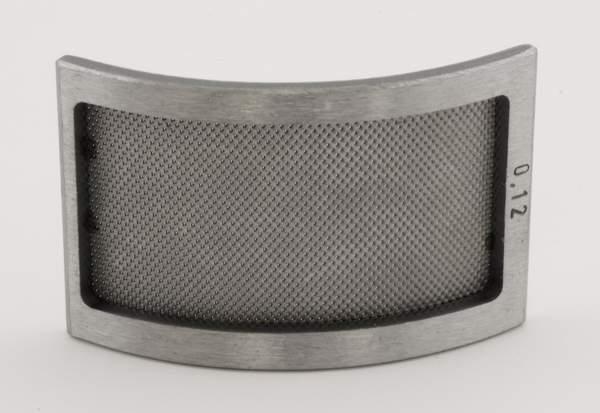

Trapezoid holes0.12 mm
02.407.0099

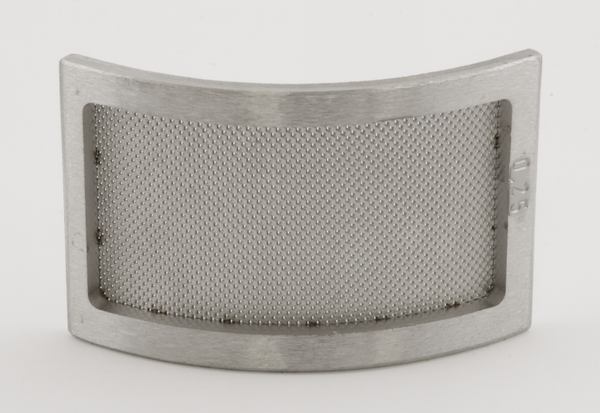

Trapezoid holes0.20 mm
02.407.0100
Trapezoid holes0.25 mm
02.407.0121
Trapezoid holes0.35 mm
02.407.0101
Trapezoid holes0.50 mm
02.407.0102

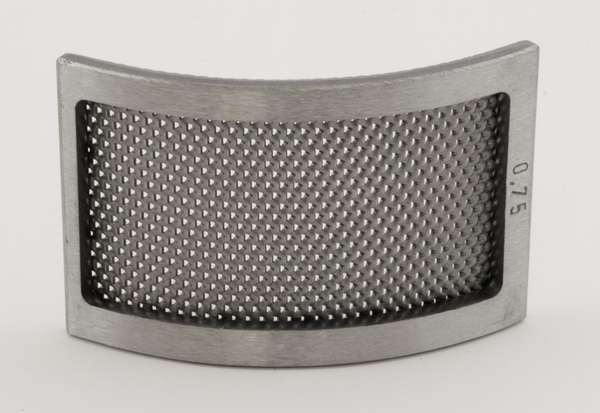

Trapezoid holes0.75 mm
02.407.0103
Trapezoid holes1.00 mm
02.407.0104

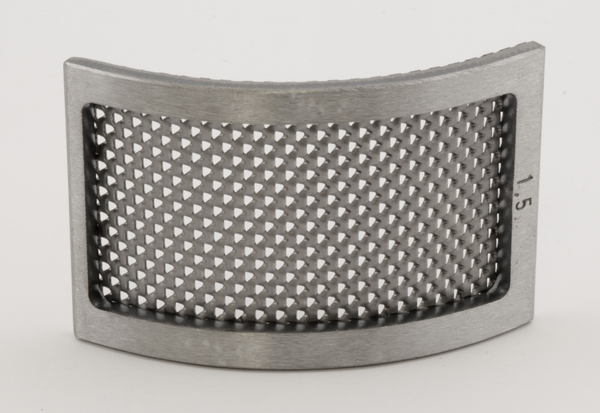

Trapezoid holes1.50 mm
02.407.0105
Trapezoid holes2.00 mm
02.407.0106
Round holes3.00 mm
02.407.0107
Round holes4.00 mm
02.407.0108
Round holes5.00 mm
02.407.0109
Round holes6.00 mm
02.407.0110
Round holes8.00 mm
02.407.0111
Round holes10.00 mm


Bottom sieves of steel 1.0344 for grinding without heavy-metal contamination

02.407.0112
Trapezoid holes0.12 mm
02.407.0113
Trapezoid holes0.20 mm
02.407.0114
Trapezoid holes0.25 mm
02.407.0122
Trapezoid holes0.35 mm
02.407.0115
Trapezoid holes0.50 mm
02.407.0116
Trapezoid holes0.75 mm
02.407.0117
Trapezoid holes1.00 mm
02.407.0118
Trapezoid holes1.50 mm
02.407.0119
Trapezoid holes2.00 mm


Cyclone-suction-combination for SK 300

Recommended use
Recommended use
The cyclone-suction combination is recommended for the homogenization of low density materials as the air jet which is generated improves discharge of the sample from the grinding chamber.

Moreover, the sample is cooled which is particularly beneficial for heat-sensitive materials.
22.935.0022Cyclone unit incl. 5 litres collection receptacle (to be used with industrial vacuum cleaner)
22.935.0023Cyclone unit incl. 26 litres collection receptacle (to be used with industrial vacuum cleaner)
22.748.0005Industrial vacuum cleaner for mills, 230 V, 50/60 Hz
(other electrical versions and spare filter bags available upon request)


Additional items SK 300

22.187.0008Ring-type filter for collecting receptacle 5 litres
22.748.0001Dust filter clamping rings for ring-type filter, incl. 5 dust filters
05.742.0008Dust filters for ring-type filter, 1 piece (please order amount multiple of 25 pcs.)
02.011.0038Collecting receptacle, 5 litres, stainless steel
02.187.0020Filter hose for collecting receptacle 5 litres, length 240 mm, incl. “comfort” flange
02.186.0037Spare filter hose for 02.187.0020
22.003.0015Collecting receptacle, 26 litres, plastic, incl. filter hose and “comfort” flange
02.186.0042Spare filter hose for 22.003.0015
99.200.0023IQ/OQ Documentation for SK 300

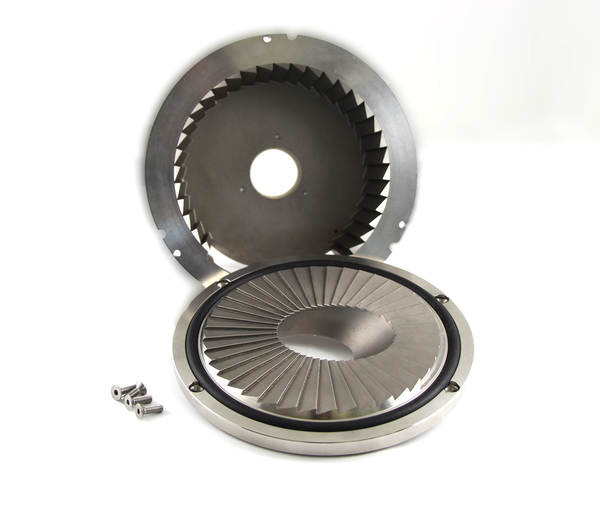

22.443.0004
Grinding assemblycast iron
22.443.0005
Grinding assemblyhardened steel
22.443.0006
Grinding assemblyнеръждаема стомана
22.716.0003

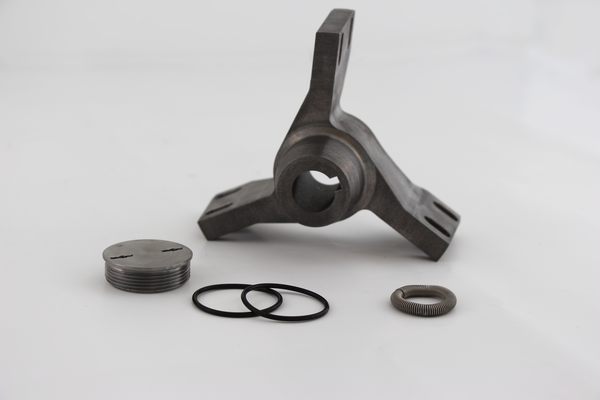

Cross beatercast iron
22.716.0004
Cross beaterнеръждаема стомана
22.526.0007
Baffle plateshardened steel, 3 pieces
22.526.0008
Baffle platesstainless steel, 3 pieces
22.526.0009
Baffle platessteel 1.1740, 3 pieces
for grinding without heavy-metal contamination


Vibratory Feeder DR 100 for SK 300

DR 100 drive unit (please order feeding kit separately)
70.938.0001
DR 100 drive unit220–240 V, 50 Hz
70.938.0003
DR 100 drive unit220–240 V, 60 Hz
70.938.0010
DR 100 drive unit200 V, 50 Hz
70.938.0006
DR 100 drive unit200 V, 60 Hz
72.020.0019Feeding kit DR 100/3.5 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 3.5 litres and holder for hopper and fixture
72.020.0020Feeding kit DR 100/22 litres for SR 300/SK 300,
incl. push-fit feed chute 75 mm, holder for push-fit feed chute, hopper 22 litres and holder for hopper and fixture
