Ситова машина AS 450 basic

МОжете да поискате безплатна необвързваща оферта на тази страница.

Моля изберете продуктите, които искате да включите в запитването ви. Можете да избирате продукти от всички продуктови страници.

Листа с вашето запитване ще бъде видим в горния десен ъгъл на уеб страницата.

General Inquiry

Not sure which items you need or you prefer a general quote?

Are you looking for the sieves that fit your machine?

You can find the recommended test sieves for this machine in the list underneath this text.

For a more detailed overview of all the test sieves we have to offer you can follow the link on the right side.

Test sieve overview

Find the ISO / ASTM test sieves you are looking for in this detailed overview!

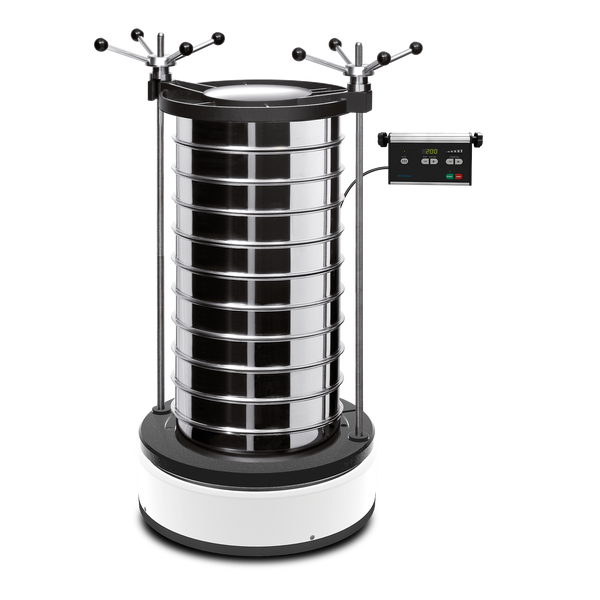

Vibratory Sieve Shakers AS 450

Vibratory Sieve Shakers AS 450 for test sieves up to 450 mm / 18” Ø
(please order clamping device, test sieves and collecting pan separately)
30.029.0001
AS 450 basic230 V, 50 Hz
other electrical versions available for the same price

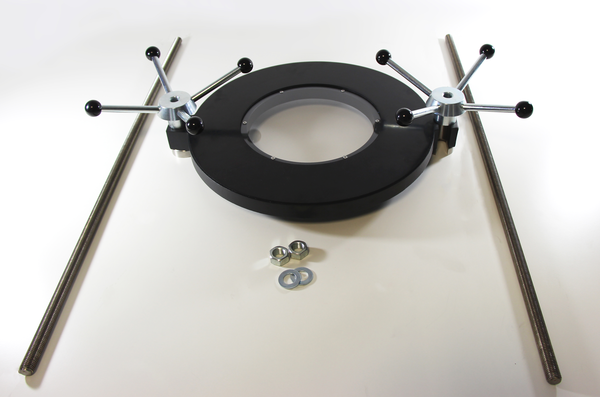

Clamping devices AS 450

AS 450 basic

32.662.0020Clamping device “standard”, for test sieves 400/450 mm Ø
32.662.0033Wet sieving clamping device “standard”, for test sieves 400/450 mm Ø


Sieve stacks AS 450

60.166.000998Sieve stack consisting of 10 test sieves (ISO 3310-1), 400 mm Ø, 65 mm height (63 µm, 125 µm, 250 µm, 500 µm, 1 mm, 2 mm, 4 mm, 8 mm, 16 mm, 31.5 mm) and collecting pan
60.168.000999Sieve stack consisting of 7 test sieves (ISO 3310-1), 450 mm Ø, 100 mm height (63 µm, 125 µm, 250 µm, 500 µm, 1 mm, 2 mm, 4 mm) and collecting pan
60.167.000998Sieve stack consisting of 10 test sieves (ASTM E11), 400 mm Ø, 65 mm height, (230 mesh, 120 mesh, 60 mesh, 35 mesh, 18 mesh, 10 mesh, 5 mesh, 5/16”, 5/8”, 1.1/4”) and collecting pan
60.169.000999Sieve stack consisting of 7 test sieves (ASTM E11), 450 mm Ø, 100 mm height
(230 mesh, 120 mesh, 60 mesh, 35 mesh, 18 mesh, 10 mesh, 5 mesh) and collecting pan


Accessories for test sieves (pans, rings, lids)



For test sieves 400 mm Ø

60.010.000400Collecting pan, неръждаема стомана, 400 mm Ø, height 65 mm
60.220.000400Intermediate pan, неръждаема стомана, 400 mm Ø, height 65 mm
60.935.000400Intermediate ring, неръждаема стомана, 400 mm Ø, height 65 mm
60.107.000400Sieve lid, неръждаема стомана, 400 mm Ø
05.114.0048O-ring for test sieves, 400 mm Ø


For test sieves 450 mm Ø

60.010.000450Collecting pan, неръждаема стомана, 450 mm Ø, height 50 mm
60.220.000450Intermediate pan, неръждаема стомана, 450 mm Ø, height 100 mm
60.935.000450Intermediate ring, неръждаема стомана, 450 mm Ø, height 100 mm
69.545.0050Sieve lid, неръждаема стомана, 450 mm Ø
05.114.0012O-ring for test sieves, 450 mm Ø


Test Sieves ø 450 mm - 100 mm height - ISO 3310/1 - stainless steel /wire gauze

# mm# mesh no.øheightstandard
60.168.000036
36 µm-450 mm100 mmISO 3310/1
60.168.000038
38 µm-450 mm100 mmISO 3310/1
60.168.000040
40 µm-450 mm100 mmISO 3310/1
60.168.000045
45 µm-450 mm100 mmISO 3310/1
60.168.000050
50 µm-450 mm100 mmISO 3310/1
60.168.000053
53 µm-450 mm100 mmISO 3310/1
60.168.000056
56 µm-450 mm100 mmISO 3310/1
60.168.000063
63 µm-450 mm100 mmISO 3310/1
60.168.000071
71 µm-450 mm100 mmISO 3310/1
60.168.000075
75 µm-450 mm100 mmISO 3310/1
60.168.000080
80 µm-450 mm100 mmISO 3310/1
60.168.000090
90 µm-450 mm100 mmISO 3310/1
60.168.000100
100 µm-450 mm100 mmISO 3310/1
60.168.000106
106 µm-450 mm100 mmISO 3310/1
60.168.000112
112 µm-450 mm100 mmISO 3310/1
60.168.000125
125 µm-450 mm100 mmISO 3310/1
60.168.000140
140 µm-450 mm100 mmISO 3310/1
60.168.000150
150 µm-450 mm100 mmISO 3310/1
60.168.000160
160 µm-450 mm100 mmISO 3310/1
60.168.000180
180 µm-450 mm100 mmISO 3310/1
60.168.000200
200 µm-450 mm100 mmISO 3310/1
60.168.000212
212 µm-450 mm100 mmISO 3310/1
60.168.000224
224 µm-450 mm100 mmISO 3310/1
60.168.000250
250 µm-450 mm100 mmISO 3310/1
60.168.000280
280 µm-450 mm100 mmISO 3310/1
60.168.000300
300 µm-450 mm100 mmISO 3310/1
60.168.000315
315 µm-450 mm100 mmISO 3310/1
60.168.000355
355 µm-450 mm100 mmISO 3310/1
60.168.000400
400 µm-450 mm100 mmISO 3310/1
60.168.000425
425 µm-450 mm100 mmISO 3310/1
60.168.000450
450 µm-450 mm100 mmISO 3310/1
60.168.000500
500 µm-450 mm100 mmISO 3310/1
60.168.000560
560 µm-450 mm100 mmISO 3310/1
60.168.000600
600 µm-450 mm100 mmISO 3310/1
60.168.000630
630 µm-450 mm100 mmISO 3310/1
60.168.000710
710 µm-450 mm100 mmISO 3310/1
60.168.000800
800 µm-450 mm100 mmISO 3310/1
60.168.000850
850 µm-450 mm100 mmISO 3310/1
60.168.000900
900 µm-450 mm100 mmISO 3310/1
60.168.001000
1.00 mm-450 mm100 mmISO 3310/1
60.168.001120
1.12 mm-450 mm100 mmISO 3310/1
60.168.001180
1.18 mm-450 mm100 mmISO 3310/1
60.168.001250
1.25 mm-450 mm100 mmISO 3310/1
60.168.001400
1.40 mm-450 mm100 mmISO 3310/1
60.168.001600
1.60 mm-450 mm100 mmISO 3310/1
60.168.001700
1.70 mm-450 mm100 mmISO 3310/1
60.168.001800
1.80 mm-450 mm100 mmISO 3310/1
60.168.002000
2.00 mm-450 mm100 mmISO 3310/1
60.168.002240
2.24 mm-450 mm100 mmISO 3310/1
60.168.002360
2.36 mm-450 mm100 mmISO 3310/1
60.168.002500
2.50 mm-450 mm100 mmISO 3310/1
60.168.002800
2.80 mm-450 mm100 mmISO 3310/1
60.168.003150
3.15 mm-450 mm100 mmISO 3310/1
60.168.003350
3.35 mm-450 mm100 mmISO 3310/1
60.168.003550
3.55 mm-450 mm100 mmISO 3310/1
60.168.004000
4.00 mm-450 mm100 mmISO 3310/1
60.168.004500
4.50 mm-450 mm100 mmISO 3310/1
60.168.004750
4.75 mm-450 mm100 mmISO 3310/1
60.168.005000
5.00 mm-450 mm100 mmISO 3310/1
60.168.005600
5.60 mm-450 mm100 mmISO 3310/1
60.168.006300
6.30 mm-450 mm100 mmISO 3310/1
60.168.006700
6.70 mm-450 mm100 mmISO 3310/1
60.168.007100
7.10 mm-450 mm100 mmISO 3310/1
60.168.008000
8.00 mm-450 mm100 mmISO 3310/1
60.168.009000
9.00 mm-450 mm100 mmISO 3310/1
60.168.009500
9.50 mm-450 mm100 mmISO 3310/1
60.168.010000
10.00 mm-450 mm100 mmISO 3310/1
60.168.011200
11.20 mm-450 mm100 mmISO 3310/1
60.168.012500
12.50 mm-450 mm100 mmISO 3310/1
60.168.013200
13.20 mm-450 mm100 mmISO 3310/1
60.168.014000
14.00 mm-450 mm100 mmISO 3310/1
60.168.016000
16.00 mm-450 mm100 mmISO 3310/1
60.168.018000
18.00 mm-450 mm100 mmISO 3310/1
60.168.019000
19.00 mm-450 mm100 mmISO 3310/1
60.168.020000
20.00 mm-450 mm100 mmISO 3310/1
60.168.022400
22.40 mm-450 mm100 mmISO 3310/1
60.168.025000
25.00 mm-450 mm100 mmISO 3310/1
60.168.026500
26.50 mm-450 mm100 mmISO 3310/1
60.168.028000
28.00 mm-450 mm100 mmISO 3310/1
60.168.031500
31.50 mm-450 mm100 mmISO 3310/1
60.168.035500
35.50 mm-450 mm100 mmISO 3310/1
60.168.037500
37.50 mm-450 mm100 mmISO 3310/1
60.168.040000
40.00 mm-450 mm100 mmISO 3310/1
60.168.045000
45.00 mm-450 mm100 mmISO 3310/1
60.168.050000
50.00 mm-450 mm100 mmISO 3310/1
60.168.053000
53.00 mm-450 mm100 mmISO 3310/1
60.168.056000
56.00 mm-450 mm100 mmISO 3310/1
60.168.063000
63.00 mm-450 mm100 mmISO 3310/1
60.168.071000
71.00 mm-450 mm100 mmISO 3310/1
60.168.075000
75.00 mm-450 mm100 mmISO 3310/1
60.168.080000
80.00 mm-450 mm100 mmISO 3310/1
60.168.090000
90.00 mm-450 mm100 mmISO 3310/1
60.168.100000
100.00 mm-450 mm100 mmISO 3310/1
60.168.106000
106.00 mm-450 mm100 mmISO 3310/1
60.168.112000
112.00 mm-450 mm100 mmISO 3310/1
60.168.125000
125.00 mm-450 mm100 mmISO 3310/1
